The installation principle of the automobile speed limiter is mainly based on the working principle of the automobile throttle system. A general electronic automobile throttle system includes accelerator pedal, pedal sensor, electronic control unit (ECU), motor, and throttle mechanism. The driver steps on the accelerator pedal according to the power required for driving. The accelerator pedal position sensor converts the collected accelerator pedal position signal into an electrical signal and transmits it to the electronic control unit. The electronic control unit adjusts the throttle through the electric motor. , achieving full electronic control of the throttle.

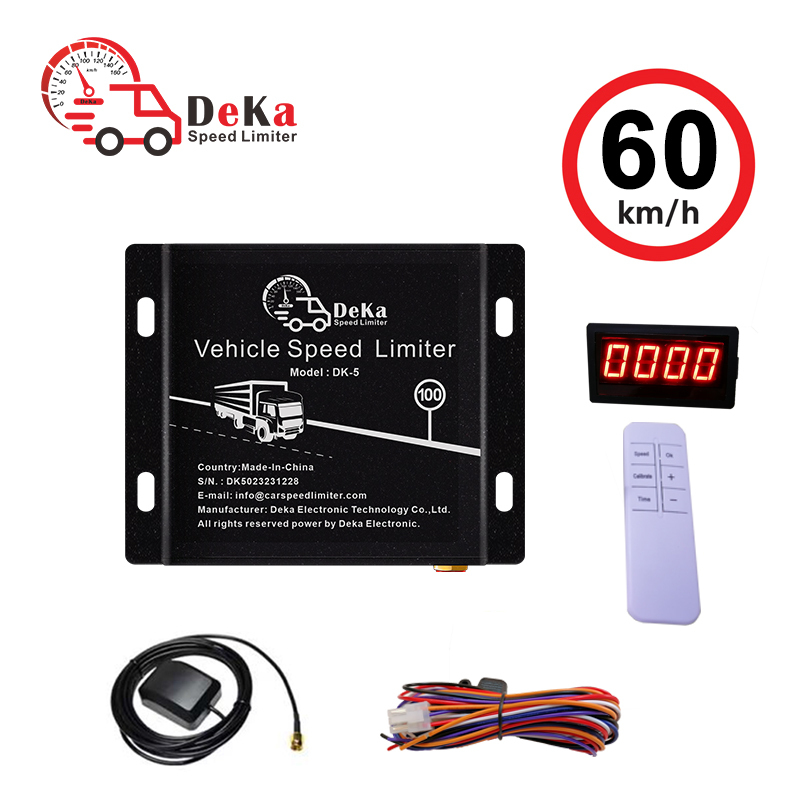

DEKA Vehicle Speed Limiters features
1. Tamper proof
2. Speed Limiter recorder.
3. Enforce to limit the pre-set speed intelligently, safe speed limit.
4. USB flash data downloaded. Vehicle travelling data could be retrieved by using a computer or a USB flash.
5. Data could be recorded for future reference, including speed record, year, month, day, hour, munite, second, the speed of vehicle, etc.
6. Tamper proof. Deka vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode- vehicle speed is restricted to 40km/h or 30km/h or 20km/h.
7. Pre-warn driver of set speed limit is reached, beep sound will be produced continuously.
8. Installation Deka speed governor could be hidden in a place not accessible by unauthorized people.
9. The speed limiter recorder could communicate with computer by use of USB flash.
10. Wide applicable for public service vehicles, trucks, cars, school buses,etc.
11. Support for both electronic pedal and mechanical vehicles.
| Brand | Deka Vehicle Speed Limiter |
| Model | Deka-5 |
| Test | 100% test before delivery |
| Dimention | 105(L)x75(W)x27(H) mm |
| Weight | 0.5kgs |
| Speed Limit scope | 10km/h to 150km/h |
| Speed Limit Deviation | ±2km/h |
| Working Voltage | DC9-36VDC |
| Working Power | 2W |
| Temperature resistance | -20℃ to +70℃ |
| Tamperproof | Yes |
| Programable | Yes |
| Be Controlled by | The administrator not the driver |
| Certificate | ISO9001, ISO14001, CE, KEBS, SONCAP |
| Applications | Public service vehicles, trucks, van, bus, cars, etc. |
